SHZ Stabilní hasicí zařízení






Dodáváme zařízení pro stabilní a polo-stabilní hasicí zařízení (SHZ) a pro všechny vaše potřeby z oblasti požární ochrany (sprinklerových a pěnových). Běžně poskytujeme servis ve vysoké kvalitě a just in time dodávky.

Stabilní hasicí zařízení (SHZ) je aktivní metoda protipožární ochrany sestávající z vodovodního systému, který zajišťuje přiměřený tlak a průtok do potrubí rozvodu vody, na které jsou připojeny požární sprinklery (sprinklerové hlavy).

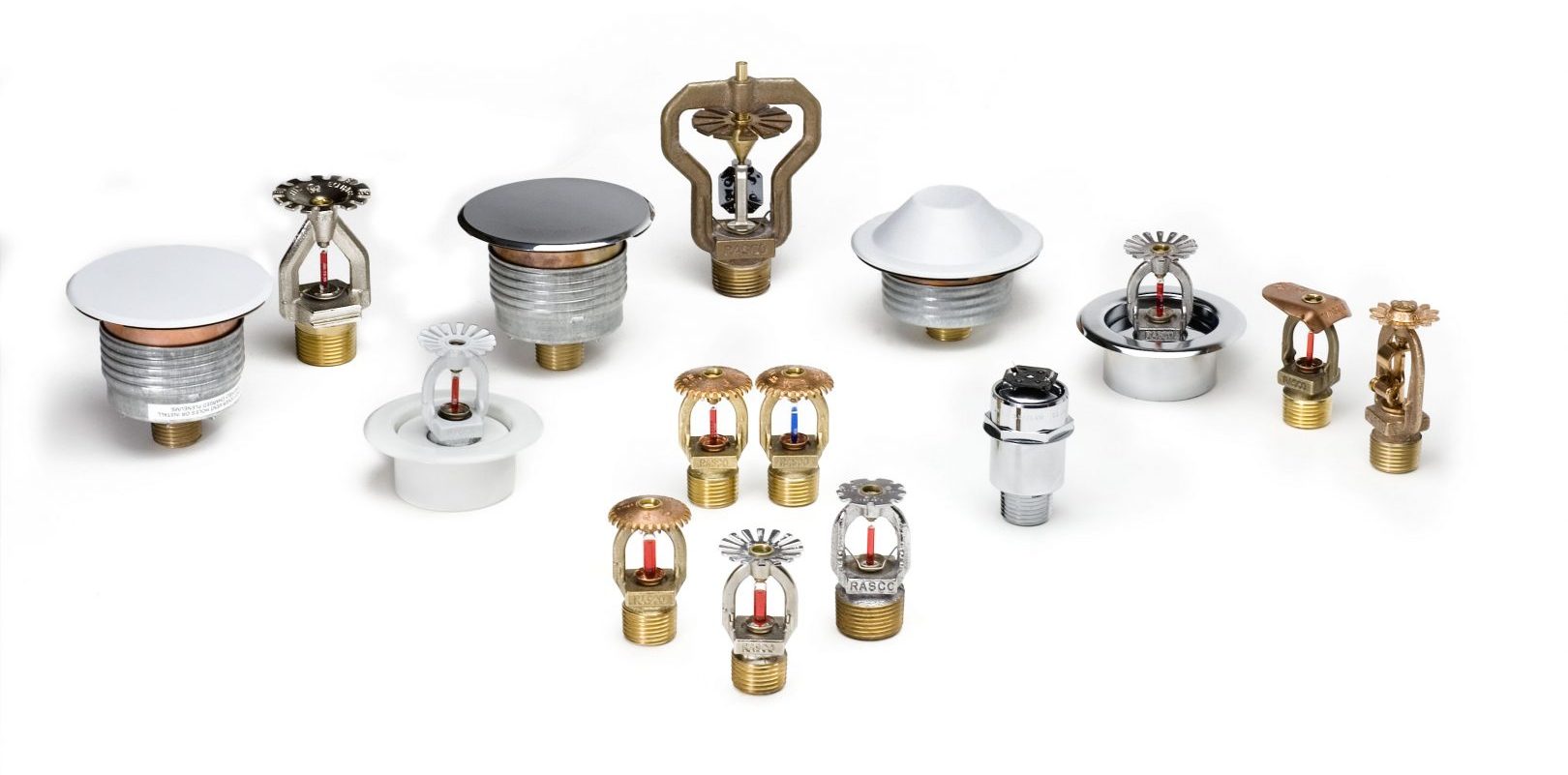

SPRINKLERS
Model Stojící Visící Horizontální Sidewall Vertikální Sidewall Nominální K-Factor
gpm/psi1/2
(L/min/bar1/2)		 Nominální závit
Size
NPT nebo ISO7-1		 Reakce Schválení
(viz poznámky)
Std. Recessed Conical Conc. Flat Conc. Std. Recessed ConicalConc. Flat Conc.
STANDARD SPRAY – STANDARD REAKCE
F1 Series * * *     * *     * 2.8 (40), 4.2 (60), 5.6 (80) ½” STD. cULus
F156 * * *     * *     * 5.6(80) ½” STD. cULus, FM
F156 * * *             * 5.6(80) ½”   cULus, FM, LPCB
F156 * * *               5.6 (80) ½” STD. cULus, FM, LPCB, VdS, CE
F156-300 * * *               5.6 (80) ½” STD. cULus
F1 LO * * *               8.0 (115) ¾” STD. cULus, FM, LPCB,VdS, CE
F1-300 * * *               8.0 (115) ¾” STD. cULus
G * *                 2.0 (29) ½” STD. cULus, VdS
G * *                 2.8 (40) ½” STD. cULus, FM, VdS
G * *                 4.2 (60) ½” STD. cULus, LPCB, VdS
G * *                 5.6 (80) ½” STD. cULus, FM, LPCB, VdS, CE
G * *                 8.0 (115) ½”, ¾” STD. cULus, FM, LPCB, VdS, CE
G Recessed FP Escutcheon     *               2.8 (40), 4.2 (60), 5.6 (80),8.0 (115) ½”, 1” STD. cULus
G Recessed FP Escutcheon     *               5.6 (80) ½”, 1” STD. cULus, FM, LPCB, CE
G Recessed F1 Escutcheon     *               2.8 (40), 4.2 (60), 5.6 (80),8.0 (115) ½”, ¾”, R3/8 STD. cULus, LPCB, VdS
G           *       * 5.6(80) ½” STD. LPCB, FM
G4         *           2.8 (40), 4.2 (60), 5.6 (80) ½”, 1” STD. cULus
G4-300         *           5.6 (80) ½”, 1” STD. cULus
G5-28         *           2.8 (40) ½” STD. FM
G5-56         *           5.6 (80) ½” STD. FM, LPCB, VdS, CE
G5 Series with SR gasket cover         *           2.8 (40), 4.2 (60), 5.6 (80),

8.0 (115)

 ½“, ¾” STD. cULus
G5-56 300 with SR gasket cover         *           5.6 (80) ½” STD. cULus
G4A Adjustable Concealed         *           5.6

(80)

 1” STD. FM
      STANDARD SPRAY –  RYCHLÁ   REAKCE
F1FR Series * * * *   * *     * 2.8 (40), 4.2 (60) , 5.6 (80) ½” QUICK cULus
F1FR LL Series   * * *             4.2 (60), 5.6 (80) ½” QUICK cULus, LL
F1FR40   * *               4.0

(57)

 ½” QUICK VdS, CE
F1FR56 * * *     * *     * 5.6 (80) ½” QUICK cULus, FM
F1FR56 * * *               5.6 (80) ½” QUICK cULus, LPCB, VdS, CE
F1FR56-300 * * * *   * * *     5.6 (80) ½” QUICK cULus
F1FR LO * * *               8.0 (115) ¾” QUICK cULus, FM
F1FR LO * *                 8.0 (115) ¾” QUICK cULus, FM, LPCB,VdS, CE
F1FR LO (International) * * *               8.0 (115) ½“ QUICK VdS, CE
F1FR-300 * *                 8.0 (115) ¾” QUICK cULus
KFR56 * * * *   * *       5.6 (80) ½” QUICK cULus
KFR56   * *               5.6 (80) ½” QUICK cULus, FM
KFR56-300 * * * *   * *       5.6 (80) ½” QUICK cULus
GFR * * *     * *       2.8 (40), 4.2 (60), 5.6 (80), 8.0 (115) ½”, ¾” QUICK cULus
GFR * *                 8.0 (115) ¾” QUICK cULus, FM
G5 Series         *           2.8 (40), 4.2 (60), 5.6 (80), 8.0 (115) ½”, ¾” QUICK cULus
G4A Adjustable Concealed         *           4.2 (60), 5.6 (80) 1” QUICK cULus
G6-56                 *   5.6 (80) ½” QUICK cULus
XL Flush Commercial   *       *         5.6 (80) ½” QUICK cULus, LPCB
ROZŠÍŘENÉ POKRYTOVÁNÍ – LIGHT HAZARD
F1FR56 QREC   * * *             5.6 (80) ½” QUICK cULus
F1FR56 QREC           * *       5.6 (80) ½” QUICK cULus, FM
F1FR56-300 QREC   * * *             5.6(80) ½” QUICK cULus
F1FR QREC   * *               8.0 (115) ¾” QUICK cULus, FM
F1FR QREC           * *       8.0 (115) ¾” QUICK cULus
F1FR QREC           * *       8.0 (115) ¾” QUICK FM
F1FR QREC CCP       *             8.0 (115) ¾” QUICK cULus
F1FR-300 QREC   * *               8.0 (115) ¾” QUICK cULus
F1FR-300 QREC-9           * *       8.0 (115) ¾” QUICK cULus
F1FR-300 QREC CCP       *             8.0 (115) ¾” QUICK cULus
DH56           * * *     5.6 (80) ½” QUICK cULus
DH80           * * *     8.0 (115) ¾” QUICK cULus
JL112 * * *               11.2 (160) ¾” QUICK cULus
J112 * * *               11.2 (160) ¾” QUICK cULus
G6-80                 *   8.0 (115) ¾” QUICK cULus
G4 XLO QR ECLH/ECOH         *           11.2 (160) ¾” QUICK cULus
SWC               *     8.0 (115) ¾” QUICK cULus
MBEC-14           *         14.0(200) ¾” QUICK FM
N252 EC   *                 25.(360) 1” QUICK FM
ROZŠÍŘENÉ POKRYTOVÁNÍ – ORDINARY HAZARD
JL112 * * *               11 (160) ¾” STD. & QUICK cULus
J112 * * *               11 (160) ¾” STD. & QUICK cULus
GFR VELO-ECOH Upright *                   1 (200) ¾” STD. cULus
GFR VELO-ECOH Pendent   * *               14.0 (200) ¾” STD. cULus
G4 XLO QR ECLH/ECOH         *           11.2 (160) ¾” QUICK cULus
MBEC-14           *         14.0 (200) ¾” QUICK FM
N252 EC   *                 25.2 (360) 1” QUICK FM
ROZŠÍŘENÉ POKRYTOVÁNÍ – EXTRA HAZARD
MBEC-14           *         14.0 (200) ¾” QUICK FM
N252 EC   * *               25.2 (360) 1” STD. cULus
N252 EC   *                 25.2 (360) 1” QUICK FM
SKLAD – CMDA
GL 112 * *                 11.2 (160) ¾” QUICK FM
G XLO * *                 11.2 (160) ½”, ¾” STD. cULus, FM
GVELO   *                 14.0 (200) ¾” STD. cULus, FM
J168 *                   16.8 (240) ¾” STD. cULus, FM
N252 EC   * *               25.2 (360) 1” STD. cULus
N252 EC   *                 25.2 (360) 1” QUICK FM
SKLAD – INTERMEDIATE LEVEL
F1FR56-INT. LEVEL * *                 5.6 (80) ½” QUICK cULus, FM
F156-INT. LEVEL * *                 5.6 (80) ½” STD. cULus, FM
F1FR-INT. LEVEL * *                 8.0 (115) ¾“ QUICK cULus, FM
F1-INT. LEVEL * *                 8.0 (115) ¾” STD. cULus, FM
KFR56 INT. LEVEL * *                 5.6 (80) ½” QUICK cULus
KFR56 INT. LEVEL   *                 5.6 (80) ½” QUICK FM
G-INT. LEVEL * *                 5.6 (80), 8.0 (115) ½”, ¾” STD. cULus, FM
GFR-INT. LEVEL * *                 5.6 (80), 8.0 (115) ½”, ¾” QUICK cULus
GL 112 * *                 11.2 (160) ¾” QUICK FM
G XLO * *                 11.2 (160) ½”, ¾” STD. cULus, FM
SKLAD- CMSA
HL-22   *                 22.4 (320) 1” FAST cULus
N252 EC   *                 25.2 (360) 1” QUICK FM
SKLAD – ESFR
JL-14   *                 14.0 (200) ¾” FAST cULus, FM, LPCB, VdS
JL-17   *                 16.8 (240) ¾” FAST cULus, FM, LPCB, VdS
HL-22   *                 22.4 (320) 1” FAST cULus, FM, LPCB, VdS
N25 ESFR   *                 25.2 (360) 1” FAST FM
SUCHÝ
F3-56   * * *   * *       5.6 (80) 1”, ¾” STD. cULus, FM, CE
F3QR56   * * *   * *       5.6 (80) 1”, ¾” QUICK cULus
F3QR56   * *     * *       5.6 (80) 1”, ¾” QUICK FM
F3-80   * * *   * *       8.0 (115) 1″ STD. cULus
F3QR80   * * *   * *       8.0 (115) 1″ QUICK cULus
G5-56 Dry         *           5.6 (80) 1″ QUICK cULus
G5-56 Dry         *           5.6 (80) 1″ STD. FM
DH56 Dry           * * *     5.6 (80) 1” QUICK cULus
DH80 Dry           * * *     8.0 (115) 1″ QUICK cULus
F3RES 44 Dry           * *       4.4 (63) 1″, ¾” FAST cULus
KONVENČNÍ
F1 * *                 5.6

(80)

 ½” STD. LPCB,VdS, CE
F1 LO * *                 8.0 (115) ¾” STD. LPCB, CE
G * *                 4.2 (60), 5.6 (80), 8.0 (115) ½”, ¾” STD. LPCB, VdS, CE
F1FR * *                 5.6 (80) ½” QUICK LPCB,VdS, CE
F1FR LO * *                 8.0 (115) ¾” QUICK LPCB, CE



Požární sprinklerové systémy jsou široce používány po celém světě, s více než 40 miliony sprinklerových hlav, které jsou každý rok namontované. V budovách, které byly zcela chráněny stabilním hasicím zařízením (SHZ) , bylo více než 96% požárů kontrolováno samotnými protipožárními sprinklery.

VALVES
POLOŽKA VELIKOSTI Schválení
(viz poznámky)
Wet Alarm valve 2″ (50 mm), 2-1/2″ (65 mm), 76 mm, 3″ (80 mm), 4″ (100 mm), 165 mm, 6″ (150 mm), 8″ (200 mm) cULus, FM, LPCB, VdS, CE
Dry Alarm valve 2-1/2″ (65 mm),  4″ (100 mm),  6″ (150 mm) cULus, FM, LPCB, VdS, CE
Low Pressure Dry Systems 2″ (50 mm), 2-1/2″ (65 mm), 76 mm, 3″ (80 mm), 4″ (100 mm), 165 mm, 6″ (150 mm),  8″ (200 mm) cULus, FM, LPCB, VdS, CE
Deluge 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 165 mm, 8″ (200 mm) cULus, FM, LPCB, VdS, CE
Check   cULus, FM, LPCB, VdS, CE
Grooved – swing check 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm),  8″ (200 mm) cULus, FM, LPCB, VdS, CE
Flanged – twin disk 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm),  8″ (200 mm) cULus, FM, LPCB, VdS, CE
Motýlková klapka internal tamper switch   cULus, FM, LPCB, VdS, CE
Grooved 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm) cULus, FM, VdS, Pavus
Wafer PN10/16 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm) cULus, FM, VdS
Gate
OS&Y 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm) cULus, FM, VdS
NRS            2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm) cULus, FM, VdS
NRS post flange 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm) cULus, FM, VdS
Wall post indicator 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm) FM
Test and Drain 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2”(50mm) FM
Accessories Supervisory limit switch,
Flexibilní Sprinkler hadice
Opletený 700mm, 910mm , 1000mm , 1200mm ,1500mm FM, VdS, Pavus
Neopletený 700mm, 910mm , 1000mm , 1200mm ,1500mm cULus, Pavus
Drážkované tvarovky – lakovaný RAL3000,  Pozinkované a jiná úprava na přání
Spojka – Rigid & Flex   cULus, FM, VdS
Rigid Light-duty 3″ (80 mm), 4″ (100 mm), 6″ (150 mm), 8″ (200 mm) cULus, FM, LPCB, VdS (only for 2-1/2“, 3“ & 4“)
Rigid Standard 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm), 14“(350mm), 16“(400mm), 18“(450mm), 20“(500mm), 24“(600mm)
Flex Standard 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm), 14“(350mm), 16“(400mm), 18“(450mm), 20“(500mm), 24“(600mm) cULus, FM, LPCB, VdS
Koleno – 45° &  90° 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm), 14“(350mm), 16“(400mm), 18“(450mm), 20“(500mm), 24“(600mm) cULus, FM, VdS
T-Kus – Equal tee 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm), 14“(350mm), 16“(400mm), 18“(450mm), 20“(500mm), 24“(600mm) cULus, FM, VdS
Navrtávací pas – Mechanical Tees
U-Bolt sprinkler outlet Pipe size: 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm)

Outlet : ½“(15mm), ¾“(20mm), 1“(25mm)

 cULus, FM, VdS
Drážkovaný  vývod  Mechanical tee Pipe size: 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm),

Outlet : 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm)

 cULus, FM, VdS
Závitový   vývod Mechanical tee Pipe size: 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm),

Outlet : 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm)

 cULus, FM, VdS
Příruby
Grooved Flange 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm), 14“(350mm), 16“(400mm), 18“(450mm), 20“(500mm), 24“(600mm) cULus, FM, VdS
Flange adaptor 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm), 14“(350mm), 16“(400mm), 18“(450mm) cULus, FM, VdS
Záslepka
Dlepý 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm), 14“(350mm), 16“(400mm), 18“(450mm), 20“(500mm), 24“(600mm) cULus, FM, VdS
Excentrickým otvorem

1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm)

 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10“ (250mm), 12“ (300mm), 14“(350mm), 16“(400mm), 18“(450mm), 20“(500mm), 24“(600mm) cULus, FM, VdS
Electrical Equipment
Detektor průtoku 1” (25mm), 1-1/4”(32mm), 1-1/2”(40mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 76 mm, 4″ (100 mm), 6″ (150 mm), 8″ (200 mm) cULus, FM
Tlakový spínač Tlakový spínač alarmu, nastavitelná odezva cULus, FM, VdS
Supervisory switch outside screw and yoke (OS&Y) type gate valve &  post indicator and butterfly control valves. cULus, FM
